PLATE HEAT EXCHANGER

WHAT IS PHE (PLATE HEAT EXCHANGER) ?

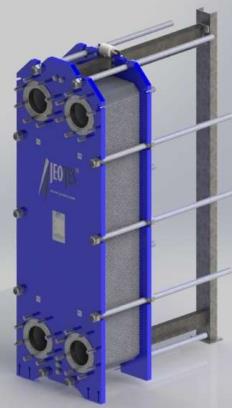

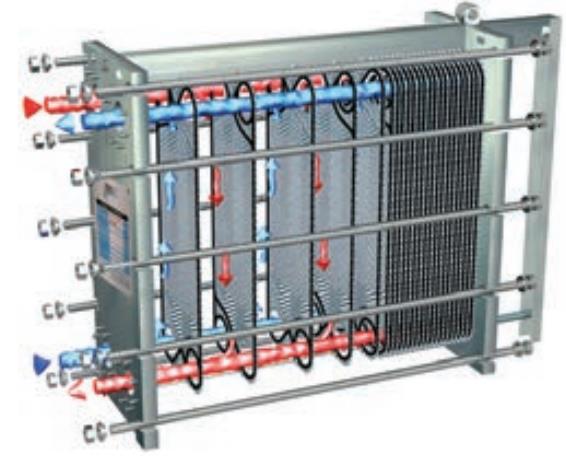

Plate heat exchangers consist of a number of corrugated plates. The plate pack is mounted between a fixed and movable pressure plate, positioned by an upper and lower carrying bar, and compressed by several tightening bolts. The media involved in the heat exchange process are fed into the plate pack via connections on the fixed and movable pressure plates.

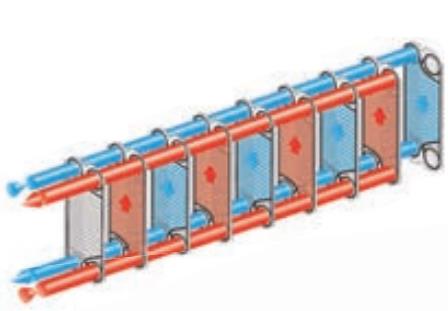

The arrangement of the plates creates two separate channel systems, enabling the two media to flow past and between each other without physical contact, leaving the exchanger again via connections in the pressure plates. Plate with different patterns can be mixed in the heat exchanger in order to achieve optimum efficiency at a given pressure drop.

PLATE DESIGN

BlueKlima™ has many types of plates with various angles and different corrugate depths and choose the most ideal plate according to your working duty and applications. It provides heat

exchangers that are suitable for wide flow passage or narrow flow passage to meet different working duties and special media requirements.

For example, there are two kinds of plates for the same model according to the angles of the pattern. One of them is of high coefficient heat transmission and high pressure drop, and the other one is of low coefficient heat transmission and low pressure drop. By combining of these two plate types, more effective and long-life design can be achieved. This is BlueKlima™’s affair.

FRAME STRUCTURE

BlueKlima™ plate heat exchanger is designed as single side flow. Flow passages can be formed by rotating the same plate 180°and arranging in a row. Consecutive plates are completely locked each other with an interlocking mechanism. The free bearing and the plates’ easy moving in this bearing help the PHE to be tightened to an appropriate position. All bolts are covered with high-strength galvanization.

APPLICATIONS

* Biotech and Pharmaceutical

* Steel

* Marine and Transportation

* Energy / Power and Utilities

* Home and Personal Care

* Food, Dairy and Beverage Industry

* HVAC

* Pulp and Paper

* Chemicals

* Mining, Minerals and Pigments

* Machinery and Manufacturing Industry

* Refrigeration

* Water and Waste Treatment

* Semiconductor and Electronics

BENEFITS

* High Energy Efficiency

* Low Operating Cost

* Flexible Configuration

* Replaceable Heat Transfer Area

* Easy to Install, Easy to Remove and Service

* Improved Design

* Automatic Cleaning System

* BlueKlima™ Warranty and Service Assurance

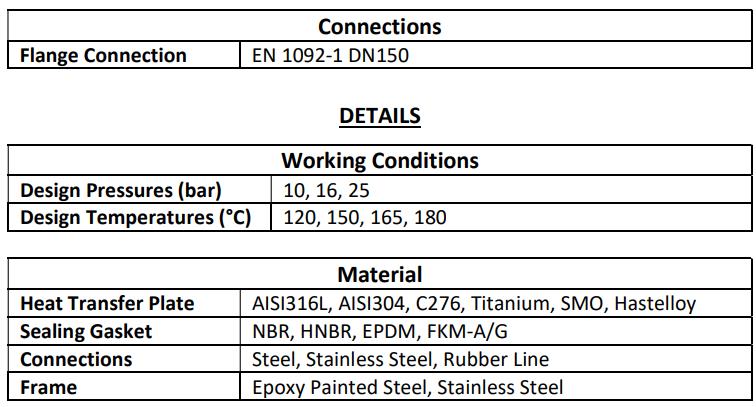

FEATURES

REQUIRED FOR THE OFFER
