BKD 100 TYPE AIR DAMPER
BKD100 Type Air Dampers; are used for Air Handling Units, Ventilating Ducts, Industrial Air Conditioners to control air volume and to shut-up air movement.
Features
* Galv. Frame+Al. Blade* Al. Frame+Al. Blade
* Stainless Leakage sheet
* Manuel or Motorised Control
* EPDM or silicone leakage gasket
* Fiberglass Nylon Bearing
* Parallel or Opposite Blade
* Operating Temp.: -20C to 80C.

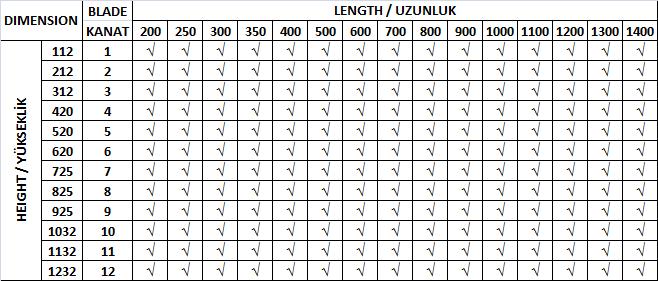

Dimensions
Max. Operating Pressure: 1500 Pa
Max. Air Velocity: 12 m/s
Max. Air Velocity: 12 m/s

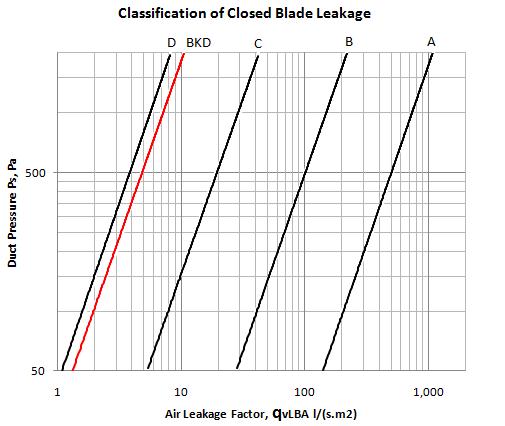

Blue Dampera are tested according to Amca 500 and EN 1751...
Class 4 leakage class...
Class 4 leakage class...
Technical Info
BKD100 : Blueklima Damper Model
620X1000 : Dimension (HxL)
GA: Galvanized Frame/Al Blade - AA: Al Frame/Al Blade
P: Parallel Blade - O: Opposite Blade
A: Motorized Control - M: Manuel Control
L: Left Connection - R: Right Connection
620X1000 : Dimension (HxL)
GA: Galvanized Frame/Al Blade - AA: Al Frame/Al Blade
P: Parallel Blade - O: Opposite Blade
A: Motorized Control - M: Manuel Control
L: Left Connection - R: Right Connection
BKD100-620X1000-GA-P-M-R
Order Code

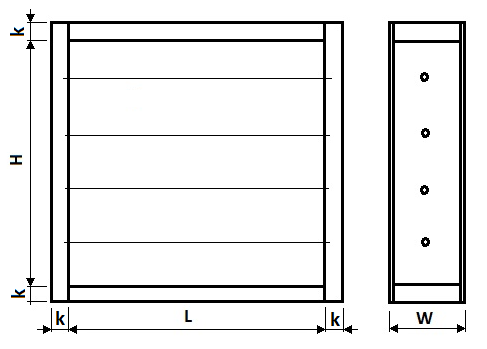

k : 40 mm W :110 mm
